80MM 3.25CNC Aluminum High Flow Air Intake Manifold Engine Throttle Body K8 110014C

80MM 3.25CNC Aluminum High Flow Air Intake Manifold Engine Throttle Body K8 110014C
  • Продавецogloszeniabochnia.info
  • Список ценUS $29.97piece
  • Продажная ценаUS $29.97piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,8 (249)

Oписание продукта

dianxiaobao
dianxiaobaodianxiaobaodianxiaobaodianxiaobao
dianxiaobaodianxiaobaodianxiaobaodianxiaobao

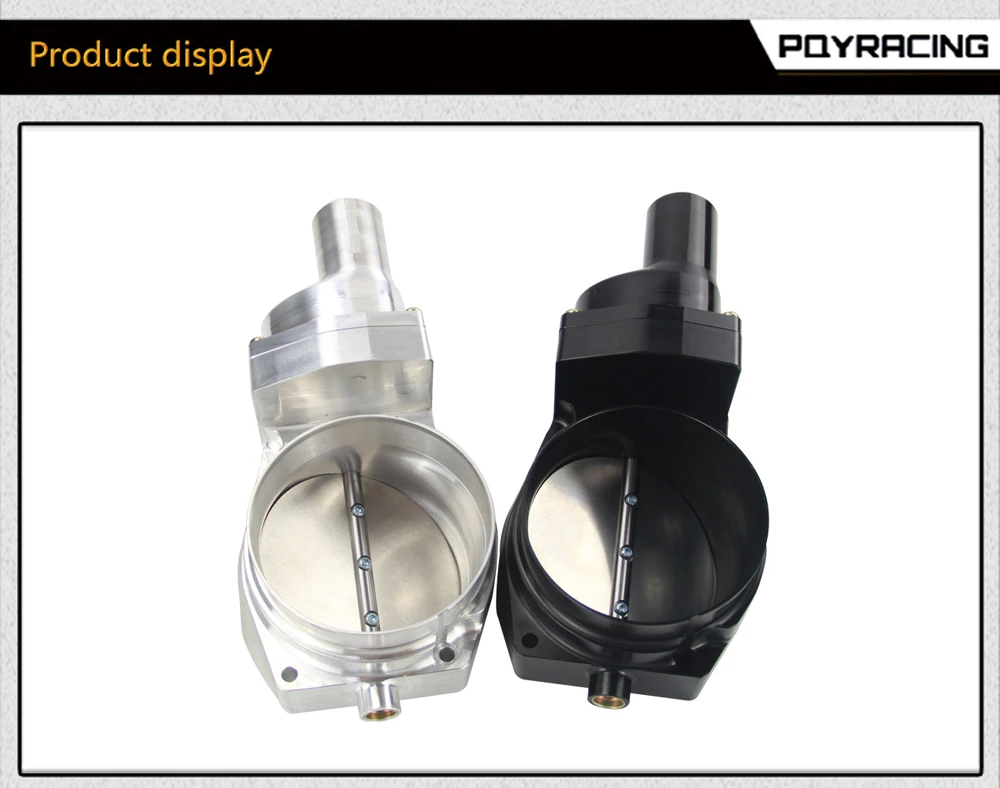

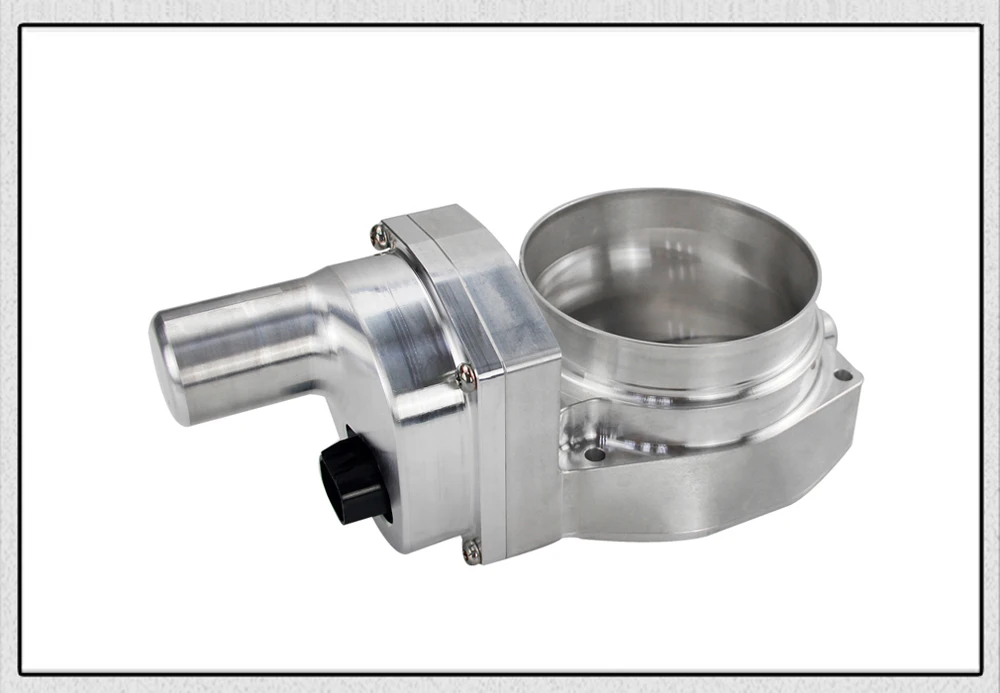

Electronic Billet 102mm Throttle Body For Chevrolet LS1 LS2 LS3 LS7 LSX LSXR Intake Manifold LS Engine PQY-TTB99



Application:

This product is modified for higher boosted cars by a third party. And it will work on (modified):

  • For 09-15 CTS V (needs adapter if using stock upper pulley)
  • For 12-15 Camaro ZL1 (needs adapter if using stock upper pulley)
  • For 10-15 Camaro
  • For 08-11 Pontiac, G8 GT/GXP, (Needs to have the Power steering Pump relocated)
  • For 05-13 Corvette, C6/Z06
  • For 05-07 CTS-V, (LS2 Only)
  • For 05-11 Trailblazer SS
  • For 05-06 Pontiac GTO, (LS2 Only) and (Needs to have the Power steering Pump relocated)
  • Note: For use with 2008 or later ECM`s.

Features and Benefits:

  • Not fit the original intake manifold.
  • This throttle body will fit any LS style 4 bolt intake manifold for example:LS2, LS3, LS7, LSX.
  • Designed for LSXr intake manifolds with drive-by-wire throttle bodies only. Tuning is required.

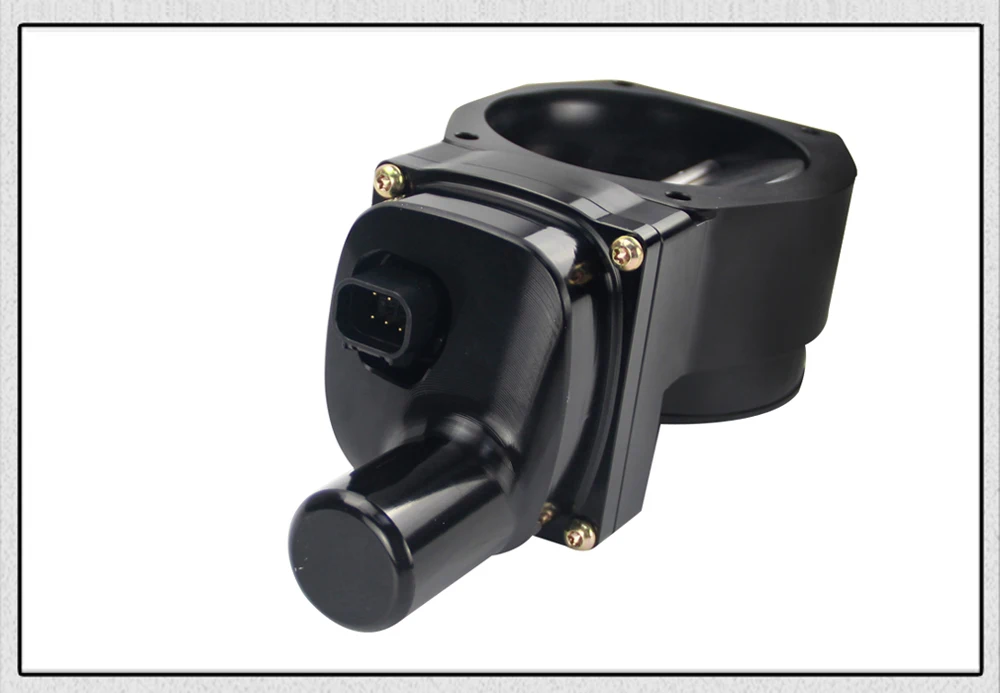

  • The 6-pin late model connector works with 2010 and newer For Camaro (F-Body), 2005 and newer For Corvette (Y-Body), and For Chevy/For GMC pickups 2007 and later with the 6-pin wiring harness.
  • This 102mm LS3/L92/LS7/LSXR (Electronic) Throttle Body, Will work on modified LS1/LS2/LS6 engines also.
  • This is a great addition to the FAST LSXR 102mm Intake Manifold.
  • It has a 4.23" OD, so you\'ll want to use a 4.25" coupler.
  • LS1 Vehicles require adapter harness. Harness allows the use of a LS2 throttle body on an LS1 vehicle.

Dimensions& Material:

  • Throttle Body Style: Multi-port injection, MPI
  • Bore Diameter (mm): 102.00mm
  • Materiel: Aluminium
  • Color: Silver,Black

Package Included:

  • 1x throttle body. (100% Brand New Never Used Or Installed)
