Oписание продукта



Quick Details


  • Place of Origin: China (Mainland)
  • Model Number: KAYA
  • Jewelry Tools & Equipments Type: Rotary Tools & Accessories
  • ball jar material: acrylic
  • voltage: 220v/110v
  • Frequency: 50/60hz
  • function: jewelry casting machine
  • HP: 1/2
  • CFM: 3
  • Investment plate size: 11"*11"




SpecificationsKAYA Mini Vacuum Investing & Casting Machine
casting machine
vacuum casting machine
jewelry casting machine
good quality




Spring mounted investment table. 1/2 HP, 3 CFM, dual stage deep draw vacuum pump.
Quality high temperature double lined vacuum hose ensures years of trouble free service.
HP: 1/2
CFM: 3
Investment Plate Size: 11" x 11"
Bell Jar: 9" Diameter x 8" High
Shipping Weight: 87 lbs
Dimension: 23"W x 11"D x 14"H

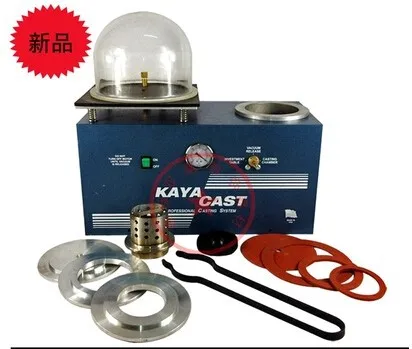

Unit comes complete as shown.
- Table Top Combination Vacuum Investment & Casting Machine 220v/50/60Hz/1Ph
- 4" Adapter Plate
- 3 1/2" Adapter Plate
- Solid Wall Flask Adapter
- Rubber Investing Pad
- 3 1/2" Silicone Gasket, 1/8" Thick
- 4" Silicone Gasket, 1/8" Thick
- Silicone Gasket F/ Solid Wall Flask, 1/8" Thick
- 9" x 8" Acrylic Bell Jar

For both standard and perforated flasks, our benchtop caster allows you to invest your flasks under vacuum on the left side of the machine and vacuum cast on the right side.

Turn the control handle left to "Investment Table," and the powerful 3 CFM internal vacuum pump pulls air bubbles from the investment under a 9" diameter x 8-1/2" high bell jar.

Turn the handle to "Casting Chamber," and vacuum is redirected to the casting side. Casts both standard and perforated flasks which fit into the well on right side of machine so that vacuum pulls from both the walls and bottom of the flask, ensuring a complete fill and denser casting. T1.5 includes:

  • Two adapter plates to cast 3-1/2" and 4" dia. perforated flasks (no adapter plate needed for 5" flasks)
  • Adapter plate to cast solid-wall flasks
  • Bell jar, flask tongs, vacuum & casting pads, 1 pt. vacuum pump oil
  • 3-1/2" x 4" perforated flask, 3-1/2" sprue base
